Startseite /Produkte/Schallloser Schweißgenerator/CCFJ9J White Soundproof Cabin Marine Single Phase 12 KVA Silent Welder Diesel Generator CCFJ9J

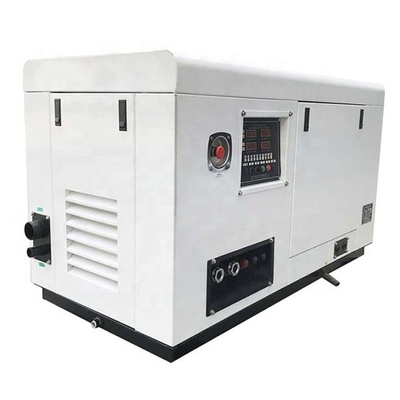

CCFJ9J White Soundproof Cabin Marine Single Phase 12 KVA Silent Welder Diesel Generator CCFJ9J

1 Unit
MOQ
$6,200.00(>=1 Units)
Preis
CCFJ9J White Soundproof Cabin Marine Single Phase 12 KVA Silent Welder Diesel Generator CCFJ9J
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 3years, 1200 hour or 1 year
Zertifizierung: CE
Model Number: CCFJ9J
Rated Voltage: 230V
Rated Current: 46A
Speed: 1500RPM
Frequency: 50HZ
Certificate: CCS
Color: White
Product Name: cabin silent marine diesel generating and welding set generator set
Grundinformation
Zertifizierung: CE, CCS
Model Number: CCFJ9J
Zahlung und Versand AGB
Packaging Details: Wodden
Supply Ability: 1000 Unit/Units per Year
Produkt-Beschreibung
Product Description
White soundproof cabin marine single phase 12 kva diesel welder generator silent

Engine
Engine model : 4D24G4-A
Rated output : 18.5Kw
Rated rpm : 1500rpm
No. of cylinders : 4
4- stroke
Bore x Stroke : 87mm*103mm
Combustion system : Direct injection
Displacement : 2.45L
Net weight : 195kg

Alternator
Alterator model : PM144D
11.25KVA
Single phase
Insulation class : H
IP class : IP23
Excitation Mode : brushless
0.8PF
Frequency : 50HZ
Vol : 230V
Generator set

Genset model :  CCFJ9J
12KVA
50HZ
Vol : 230V
0.8 PF
Single phase
Weight : 700kg
Silent
L*W*H : 1400*700*750

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure single crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution


Detailed Images

Machine Parts

Name:  Monitoring instrument & Emergency button

Brand: CY POWER

Original: China

Function :  Control generator set ( Speed / F.W. TEMP / L.O Press MPa / L.O. TEMP  / F.O. leak / Charge / Start / Alarm / Stop / Power / Test / Mute / Timer / Reset


Main Features

Name:  Oil  outlet
Brand:  No brand
Original: China

Machine Parts

Name:  Charger Power + / Power -
Brand:  No
Original: China

Main Features

Name: Sea water outlet
Brand: NO
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1500 (L) * 750 (W) * 800 (D)
Weight
750 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
